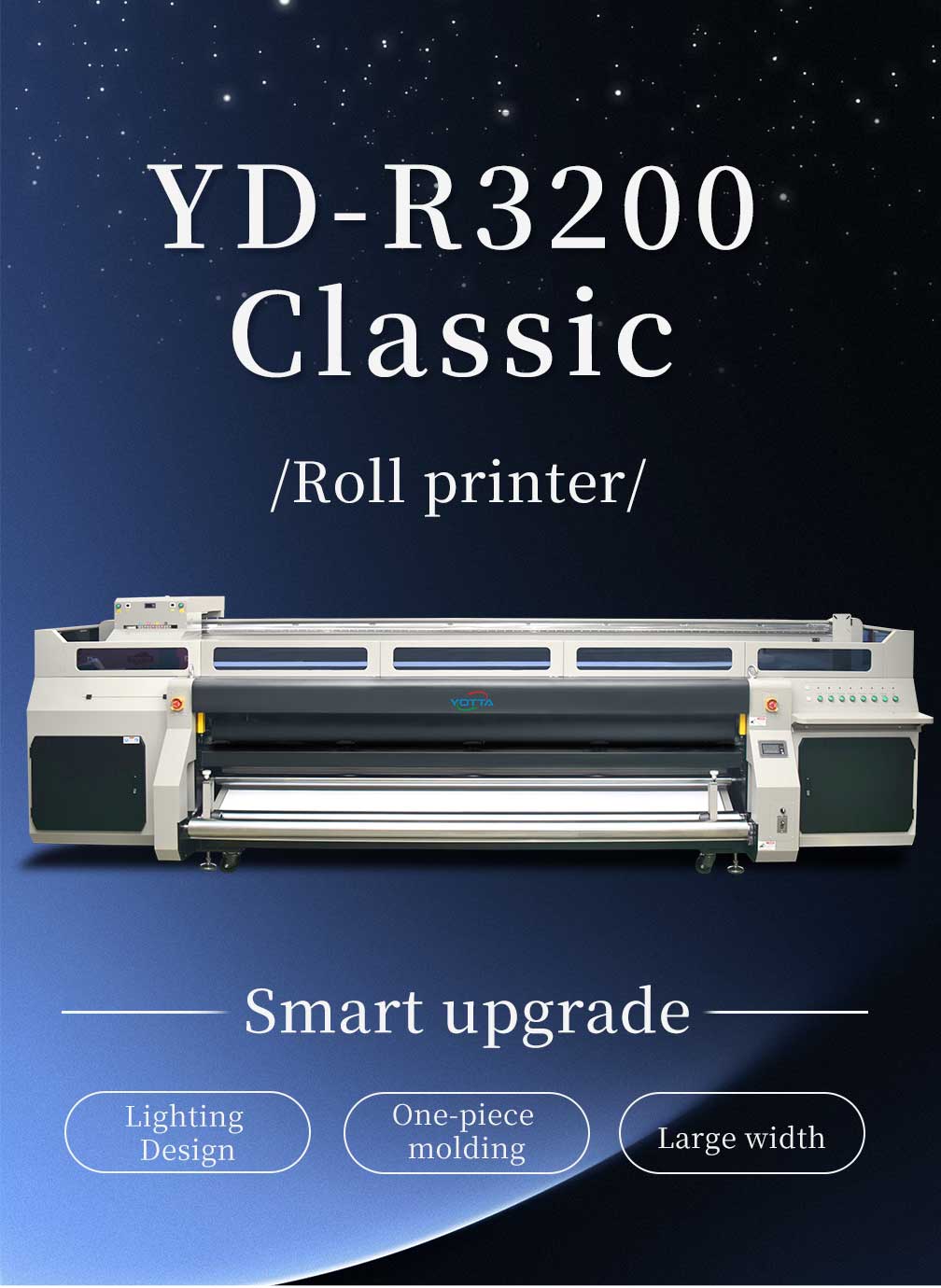

Featured 3.2m print width, YOTTA’s YD-R3200R6 roll to roll printer creates high-resolution digital printing results on soft film, wallpaper, reflective film, canvas, carpet, leather, PVC cloth and other flexible materials. It employs Ricoh Gen6 grey level industrial inkjet printheads, 7 colors optional and vanish printing supportable, which can help users produce full-color and attractive images, meeting the needs of decoration, advertising industry and other commercial uses.

YD-R3200R6 roll to roll printer adopts a series of high-end accessories. With easy-to-use functions and humanized safety protection designs, it can save your time, simplify workflow and improve efficiency and productivity while maintaining the printing quality.

Features of YD-R3200R6 3.2m roll to roll UV printer

High print resolution

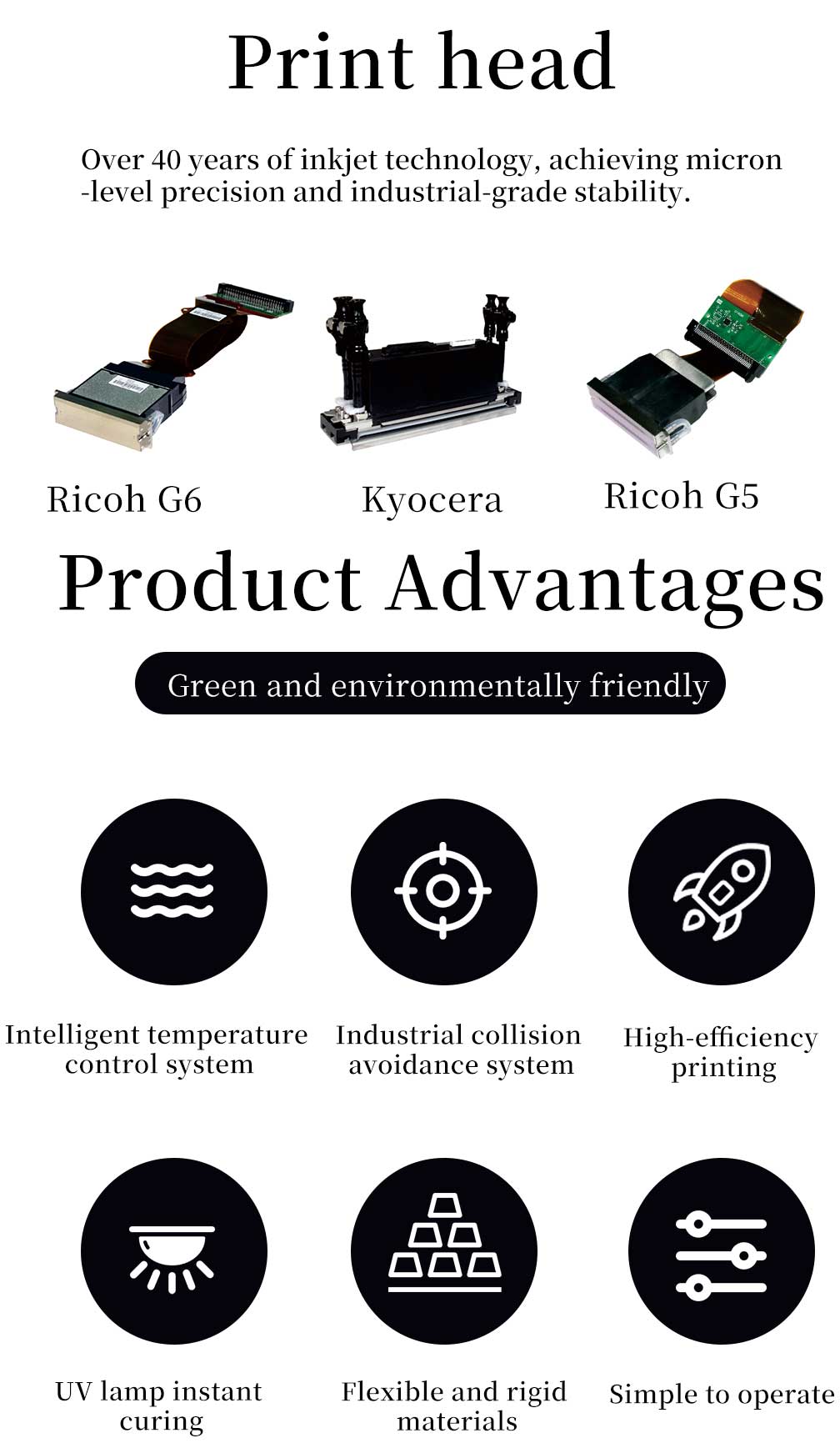

• Adopting 2-8pcs Ricoh Gen6 industrial printheads featured 7pl-21pl variable ink droplet printing and capability of printing 2pt font clearly, this 3.2m YD-R3200R6 roll to roll uv printer presents high print resolution of 600×2400 DPI.

• Printer frame made by five-axis machining center, ensure the high precision of the whole machine.

• Use special marble flat scale to debug lead rail straightness (within 0.02mm) and parallelism (0.01mm), to achieve accurate moving of carriage.

Stable and reliable

• High-temperature tempering treated integral steel frame structure, which will not deform during long-distance transport and handling.

• Using double rail steel frame beam structure, the carriage is more stable, achieving faster and smooth printing.

• The beam and the whole frame are made by a large five-axis machining center, one-time processed, ensure high precision.

Easy-to-use and user-friendly designs

• Automatic media thickness measurement function;

• More convenient feeding system design;

• Equipped with mute guide to effectively reduce noise;

• Safety protection grating design to protect machine and personnel safety.

• Double negative pressure system for color ink and white ink separately, delivering more stable ink supply.

Environmental protection

Eco-friendly UV curing ink which is VOC free, meeting environmental standards;

Sustainable economy

• LED-UV ink curing system which has longer service life compared to mercury lamp curing, no excess heat, energy-saving, also efficient.

• Variable ink droplet printing can effectively reduce ink consumption;

• Ricoh Gen6 inkjet printhead, featured internal heating system, is high-performance, and it is very suitable for long-time working, 24 hours running. If maintain in good condition, it lifetime can reach about 5 years.
